DC Power over Ethernet Adapter (DCA)

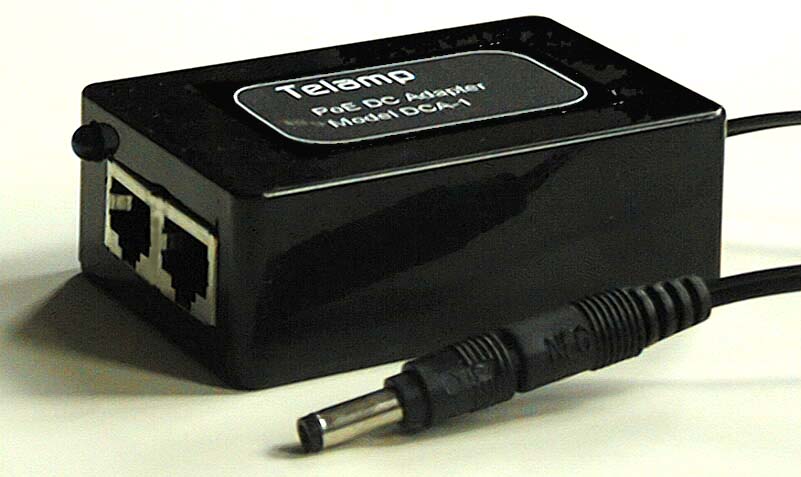

Our DCA-1 is a replacement for the normal mains operated power supply shipped with small ethernet switches, hubs, IP-phones or other equipment - making them powered from the network instead. It works with 10/100 Mbps ethernets, and has two standard 10/100base-T RJ45 connectors. Either one of these connectors can be used with a "PoE power tap" or split cable or both can be used for ethernet feed through.
The following products exist:

Type	Output	Data
TE10001/1	7.7..13.4V adjustable
TE10001/2	fix 5.0V

All mounting accessoires for the GIO product family can be used also with DCA-1 units, see this link.
Link to price list/ordering information.

Power Hub

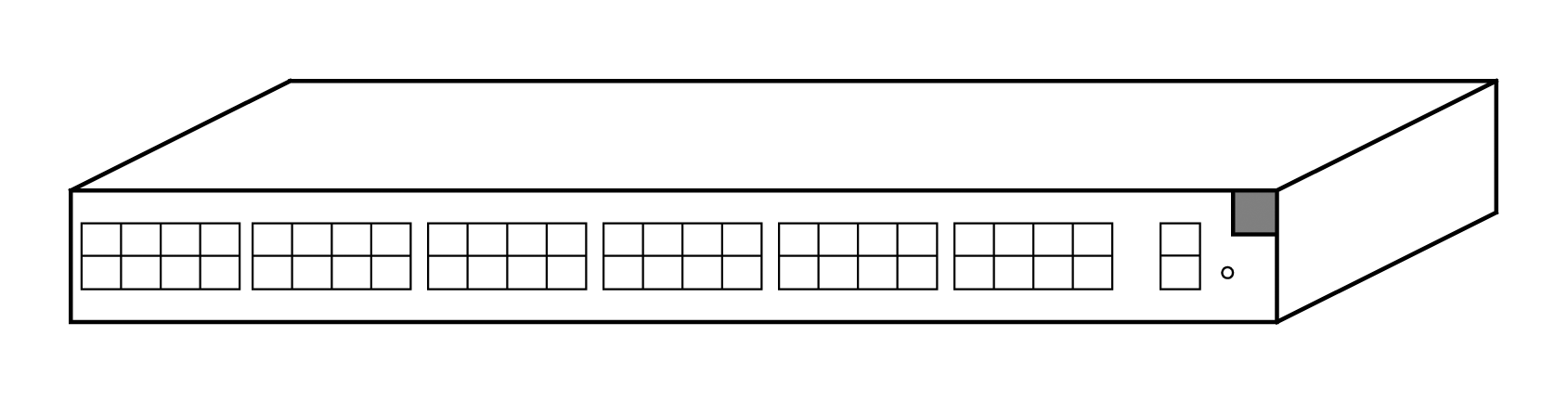

Our EHUB1 series of power hubs are intended for distribution of -48V for PoE (Power over Ethernet). They differ from other products on the market in a number of ways making them smaller, more cost effective and more reliable:

They are intended for use in -48V systems. I.e. they have no built-in 230VAC/48VDC conversion, and are thus small in size and power dissipation.
They can be used with vertical air flow cooling - the relative area open for vertical air passage is higher than 50%.
They are intended for Y-forked patch cables, and thus require only one RJ45-connector per output.

The units can be operated completely independent, but also allow full control and supervision via SVIF-T (description) interface. A number of parameters (max power per output, resistance detection, retries at failure, etc) can also be alterade from the shipped configuration and protected against further changes. Kortfattade preliminära data:

Parameter	Value
Dimensions (BDH) (mm)	43520050 or 43520043
Max power per output (W)	15W or 25W configurable
Number of outputs (pcs)	48
Input voltage	-48V DC (40...60V)

Input supply voltage is connected to screw terminals at the rear side of the unit. This connection is either made for 3 cables (feeding 16 output each), 2 cables (feeding 24 outputs each) or 1 cable (feeding all 48 outputs) - selectable by jumpers at the terminals. There is also space for running the input cables via the front panel.
The unit is intended for power supply of IEEE802.3af compatible equipment, but fulfils itslef this standard only to a limited degree. Its main divergencies from the standard are evident already by the short description above.
Planned start of production May 2004. Estimated low volume price 3000SEK.
Vote for this product.

"Inverter Replacement" Unit (IRU)

Our IRU is principally a 48V to 300V DC Converter. It uses the fact that most AC mains power supplies today are switchmode, and thus work as well from 280-370V DC as from the normal 230V AC mains. Known exceptions from this rule are most CRT monitors (using the AC for demagnetizing the CRT) and some printers (using AC motors internally), but the IRU is useful with other equipment. The advantages offered by the IRU, compared to DC/AC inverters, are:

Smaller size and weigth
Higher efficiency
No low frequency input ripple
Lower cost

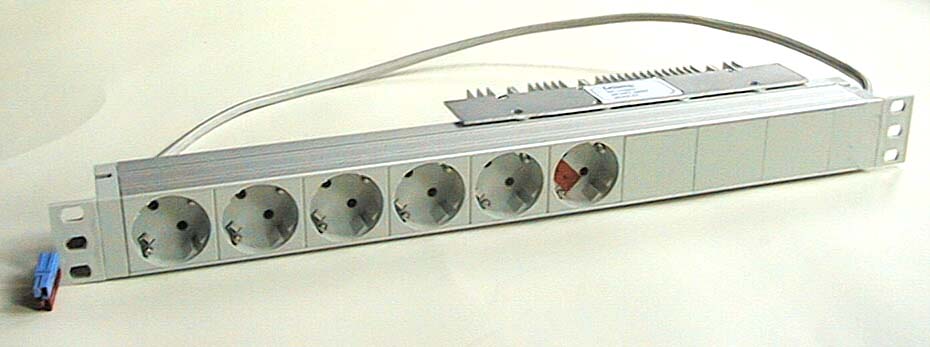

The unit shown above is a prototype for a 500W "IRU-1" unit having the following preliminary data:

Dimensions	445x50x90(mm WHD excl. 19" brackets)
Veight	0.9kg
Input Voltage	-40...-60V DC
Output Voltage	-300V DC +/-2%
Output Power	max 500W
Efficiency	typ 95% vi full last

Planned time until release is 6 months, estimated low volume cost is 2000SEK.
Vote for this product.

Click here if you want to comment any of these products.
